处理阿里云物联网平台数据转发到表格存储(Table Store)示例参考这类问题时，先确认目标场景，再按步骤核对配置或玩法细节。

概述

前提准备

1、物模型定义

2、上行消息payLoad

request.topic = "/sys/"   pk   "/"   dn   "/thing/event/property/post";request.payloadObj = "{"id":"230788029","method":"thing.event.property.post","params":{"Status":1,"Data": ["  "{"  ""P": 25,"  ""I": 105,"  ""E": 11"  "},"  "{"  ""P": 121,"  ""E": 119,"  ""I": 11"  "}"  "]},"version":"1.0"}";

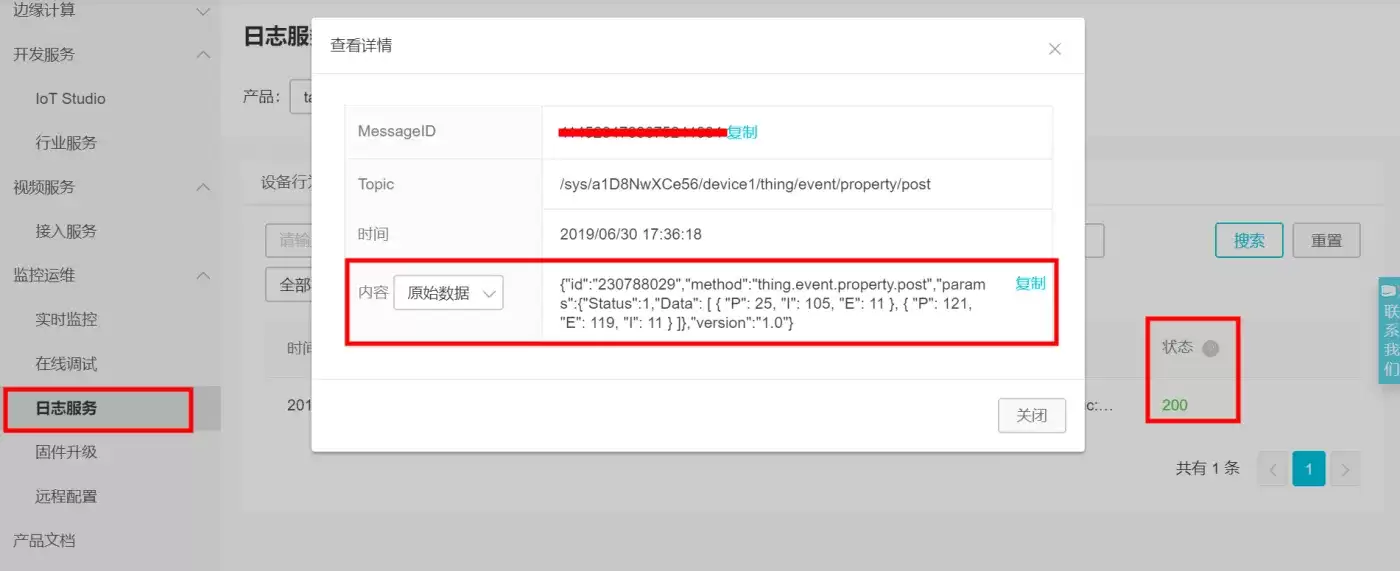

3、日志服务监控上行消息情况

4、Table Store准备

操作步骤

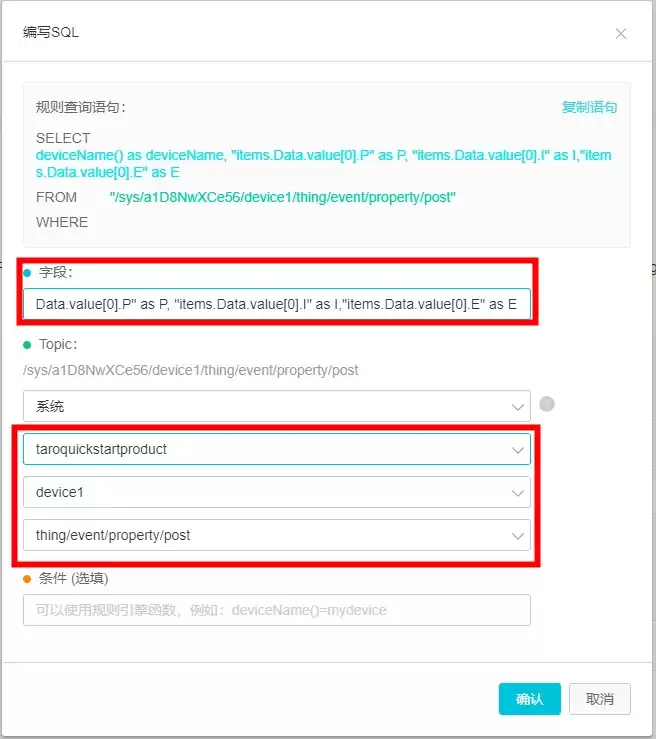

1、在规则的数据流转详情页，创建规则 --> 编辑查询规则语句：

SELECT deviceName() as deviceName, "items.Data.value[0].P" as P, "items.Data.value[0].I" as I,"items.Data.value[0].E" as E FROM "/sys/a1D8NwXCe56/device1/thing/event/property/post"

小技巧：如果使用者对具体上行消息经过物模型解析后的格式不是特别清楚，建议可以直接使用服务端订阅订阅上行消息，这样就可以直接参考具体的消息格式类型了，如下是测试订阅获取的消息格式：

"deviceName":"device1","items":{"Status":{"value":1,"time":1561886161283},"Data":{"value":[{"P":25,"E":11,"I":105},{"P":121,"E":119,"I":11}],"time":1561886161283}}}

2、转发数据

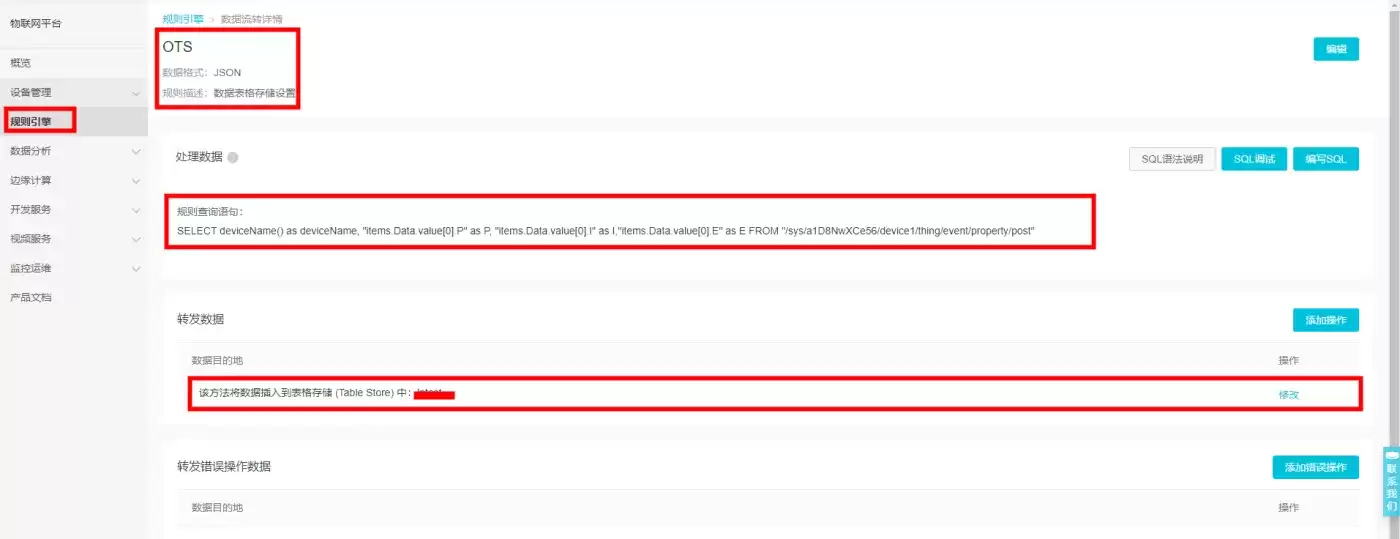

3、数据流转详情

4、开启规则引擎(注意配置完成后务必记住要开启，否则配置不生效)

5、表格存储中检查数据
